Piezometers
Vibrating Wire Type Piezometer
The Vibrating Wire Type Piezometer is a precision instrument designed to measure pore water pressure in soil, rock, or concrete for monitoring groundwater levels, embankment stability, and seepage in dams and foundations.
Features
- The vibrating wire technology ensures precise and stable measurements, even in harsh environmental conditions.
- Made from high-grade stainless steel, the piezometer is corrosion-resistant and suitable for long-term monitoring.
- An integrated thermistor allows for simultaneous measurement of temperature, aiding in accurate data interpretation.
- Compatible with various dataloggers for easy and reliable data acquisition.
| Pressure Range: | 0–500 kPa, 0–1000 kPa, 0–2000 kPa, or custom ranges |
|---|---|
| Accuracy: | ±0.5% of full scale |
| Resolution: | 0.1% of full scale |
| Temperature Range: | -20°C to +60°C |
| Material: | Stainless Steel |
| Output Signal: | Frequency output (Hz) |
| Dimensions: | Length × Diameter: 180 × 20 mm, 200 × 20 mm |
| Cable: | Armored or non-armored options available, with custom lengths |

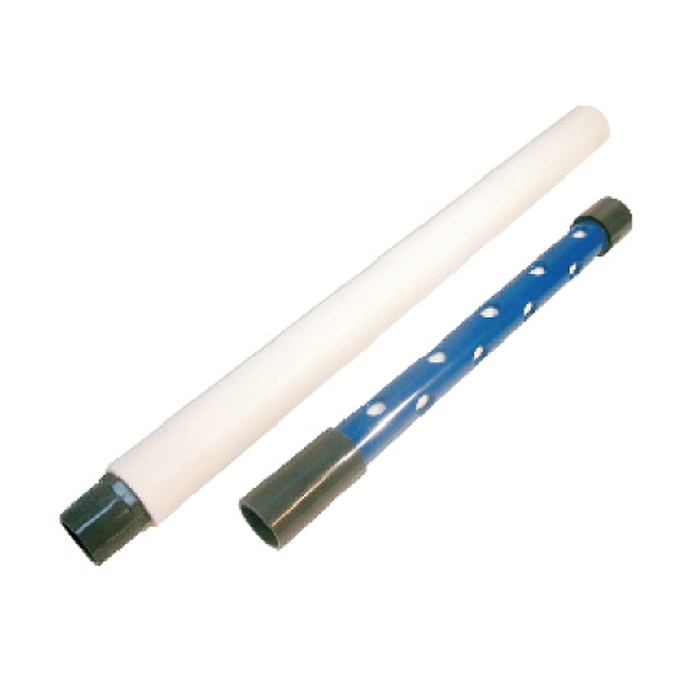

Casagrande Stand Open Stand Pipe Piezometers
It is used to measure pore water pressure in soil and rock formations. The system features a cylindrical ceramic or plastic filter element with either low or high air entry value, sealed at one end with a PVC, brass, or rubber stopper. The opposite end includes a PVC, brass, or rubber bushing to allow easy assembly with PVC pipes.
The depth of the piezometer tip is adjusted by connecting additional PVC pipes and couplings. At the surface, a protective PVC or GI pipe with a cap is used to shield the system from dust and external elements, particularly in open-loop systems designed for level measurement.
Simple yet effective, this device consists of a perforated pipe installed in a borehole, allowing water to enter and rise within the pipe to the level corresponding to the groundwater pressure. Water level is recorded through a Water Level Indicator.
| Length: | 600 mm | Outer Diameter (OD): | 37 mm | Inner Diameter (ID): | 25 mm | Material: | Porous Ceramic | Additional Details: | Top plug with nipple included | Stand Pipe: | PVC riser of 50 mm diameter with 3 m length, with socket for joining | Perforated Area: | PVC 50 mm diameter, 1 m long with brass mesh and bottom cap |
|---|
